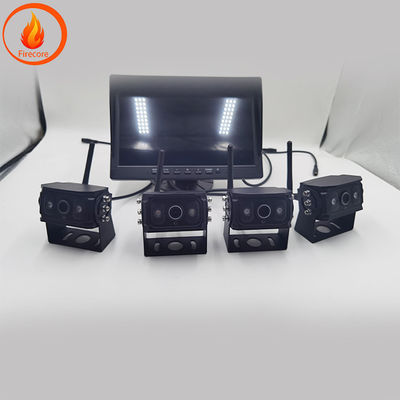

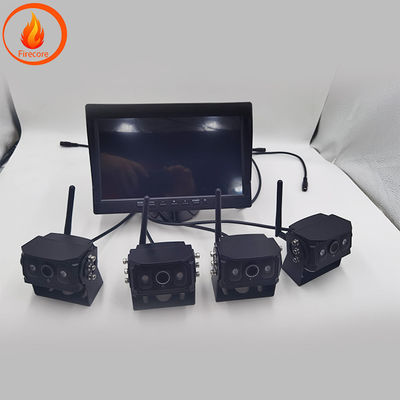

Sistem Pemantauan Kamera Kendaraan Empat kamera definisi tinggi dengan layar 7 inci untuk membalikkan gambar truk
7 inci full HD 1080P IPS quad screen display
DVR ini mendukung rekaman kamera ganda juga menyediakan pemutaran video instan
Video yang direkam pada kartu TF Mendukung penyimpanan kartu TF besar 256GB (tidak termasuk)
Empat kamera AHD infrared LED night vision secara bersamaan merekam
Ketika kendaraan di gir belakang DVR mobil akan secara otomatis beralih ke tampilan gambar kamera belakang dengan garis parkir
Hubungkan kabel ekstensi kamera anti interferensi 10 meter (33 kaki) 4 pin (jika Anda membutuhkan kabel panjang atau pendek silakan hubungi kami)
● Rekaman siklus otomatis
Jika terjadi tabrakan kendaraan, sensor G-Shock akan secara otomatis mengunci video yang direkam.
Dibandingkan dengan merekam cermin belakang yang membutuhkan mencari DVR ini hanya terlihat datar aman dan nyaman
Spesifikasi:
★ Tampilan: 7.0 - inci full HD ISP 1080P quad split display
★ Dukungan untuk ruang penyimpanan kartu SD besar: 256GB (tidak termasuk)
★ Lensa kamera: Full HD 1080P
★ 5.0M sensor gambar AHD dengan sudut pandang 120 derajat
★ Efektif piksel kamera: 1980 * 1080 piksel
★ Format video: TS
★ Format foto: JPEG
★ Daya: DC 9V - 36V
★ Waterproof night vision infrared shockproof tidak ada gangguan tidak ada penundaan
★ Dukungan fungsi: DVR mundur / bantuan parkir
★ Fitur 1 : Anti getaran wide dynamic range rekaman siklus
★ Fungsi 2 : G sensor alat penglihatan malam empat len mundur / bantuan parkir
Visi malam inframerah dekat kamera mobil: also known as active infrared night vision technology refers to using a strong infrared emission source to illuminate the target during operation and using the infrared reflected back by the target to obtain the image of the object Near infrared light operating in the wavelength range of 800 - 1000nm
Far infrared night vision (thermal imaging system) also known as passive infrared night vision technology mainly uses the infrared radiation emitted by the object itself to image which is also known as thermal imaging The thermal imaging system is based on the difference in infrared emissivity formed by the temperature difference between the target and the background It uses radiation temperature measurement technology to measure the radiation intensity of the target point by point forming a visible thermal image of the target Its theoretical working wavelength is between 1-14um but generally far - infrared night vision uses shortwave (3 μ M-5 μ m) And long wave (8 μ M-14 μ m) These two types
Among them the implementation of low light night vision for car mounted cameras needs to be improved from CMOS and algorithms And infrared night vision requires specialized infrared lenses to ensure the entry of infrared light In addition low light night vision can see color images while infrared cannot achieve color
Kami adalah produsen profesional penelitian dan pengembangan produksi dan pemantauan kendaraan
Perekam video mobil mobil kamera mobil kamera usb mobil layar kamera usb
