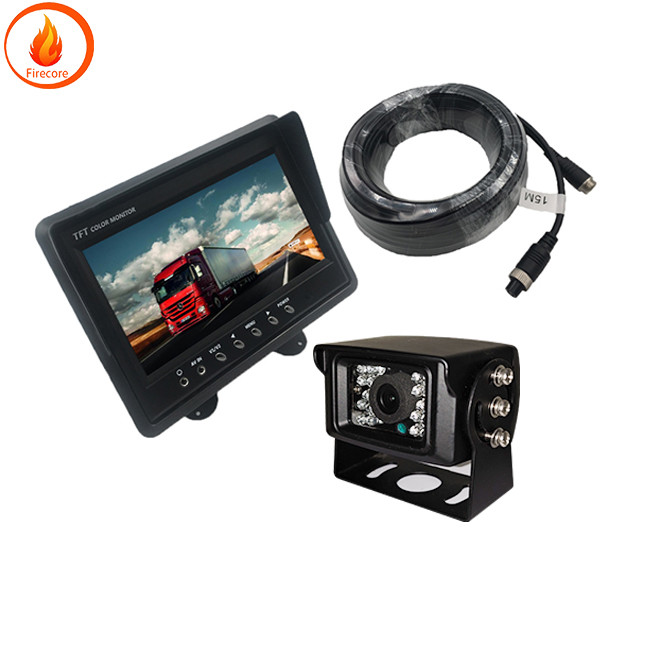

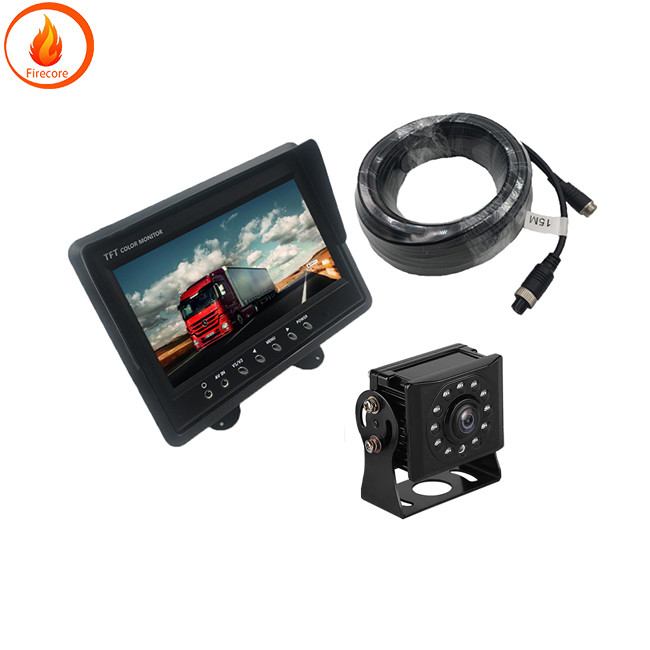

Kamera mobil AHD Infrared Night Vision 24v Reverse Camera High Definition

Sistem pemantauan kamera kendaraan 7 inci dalam catatan mengemudi mobil 12V - 24V high-definition reverse camera

Sistem bantuan penglihatan malam yang ada dapat mengenali pejalan kaki di luar jangkauan lampu besar dan memprediksi bahaya sebelumnya Prediksi sebelumnya untuk membantu pengemudi dalam mengemudi dengan aman

Cahaya rendah: Literally   it refers to the process of amplifying a small amount of visible light received    ultimately capturing and projecting an image onto the corresponding display screen    The imaging principle of low light and general cameras is consistent    both of which achieve night vision through visible light    but require a certain visible light environment

Visi malam inframerah dekat kamera mobil:  also known as active infrared night vision technology    refers to using a strong infrared emission source to illuminate the target during operation   and using the infrared reflected back by the target to obtain the image of the object    Near infrared light operating in the wavelength range of 800 - 1000nm

Far infrared night vision (thermal imaging system)    also known as passive infrared night vision technology    mainly uses the infrared radiation emitted by the object itself to image   which is also known as thermal imaging    The thermal imaging system is based on the difference in infrared emissivity formed by the temperature difference between the target and the background     It uses radiation temperature measurement technology to measure the radiation intensity of the target point by point    forming a visible thermal image of the target   Its theoretical working wavelength is between 1 - 14um    but generally far infrared night vision mainly uses shortwave (3 μ M - 5 μ m) And long wave (8 μ M - 14 μ m) These two types

Among them    the implementation of low light night vision for car mounted cameras needs to be improved from CMOS and algorithms   And infrared night vision requires specialized infrared lenses to ensure the entry of infrared light    In addition  low light night vision can see color images    while infrared cannot achieve color

Kami adalah produsen profesional penelitian dan pengembangan produksi dan pemantauan kendaraan

Perekam video mobil mobil kamera mobil kamera usb mobil layar kamera usb

Silakan hubungi kami melalui email:firecore1688@163.com
