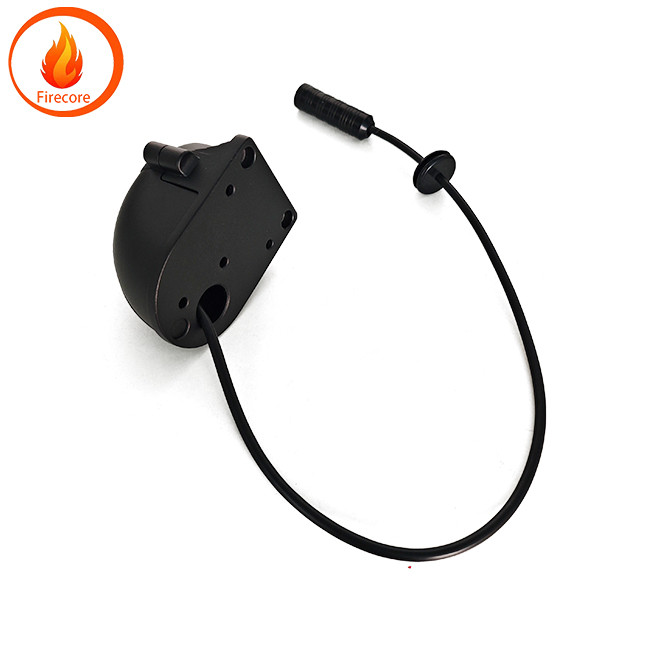

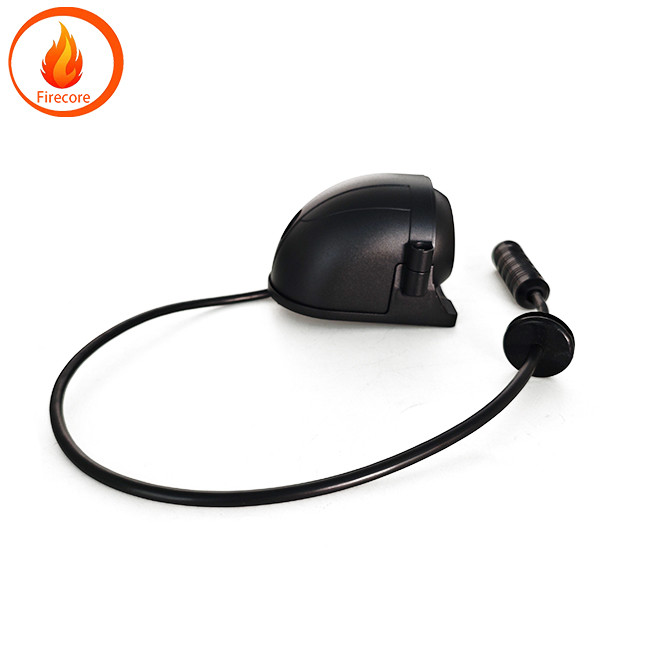

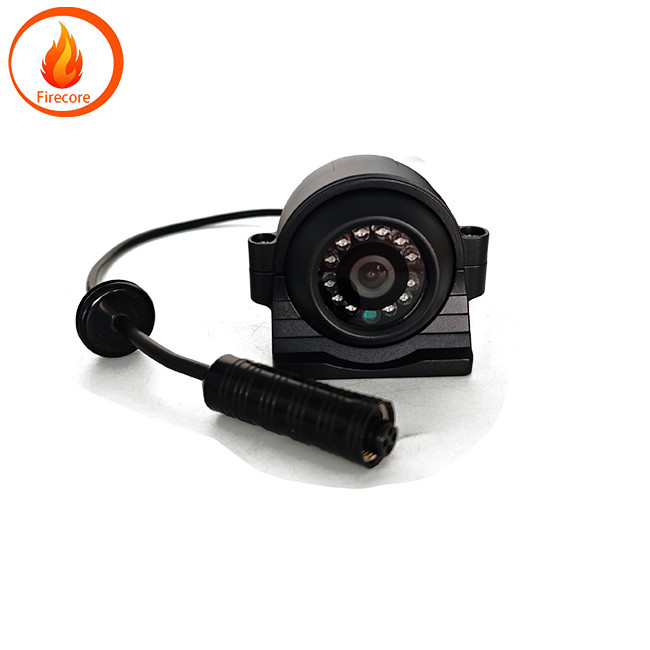

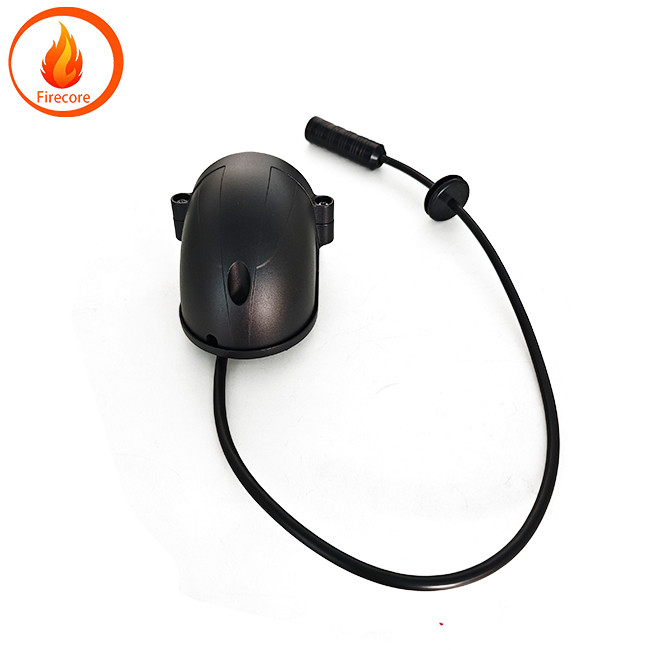

IP67 Truck Side View Camera 24V AHD kamera keamanan night vision inframerah

Kamera Keamanan Truk Infrared Tampilan malam Truk titik buta AHD side view monitoring gambar terbalik

Tegangan masukan kamera adalah 12 - 24V
Titik kontak standar untuk kepala penerbangan adalah: 1 kutub positif 2 kutub negatif 3 udara 4 video. jika Anda membutuhkan kontak lain silakan hubungi layanan pelanggan!

(1) Pemandangan sisi:  In the basic graphics mode   when turning on the left or right turn lights   the display screen switches to the left and right display modes   cancels the turn signal   and the screen automatically switches to the basic graphics mode   with a delay of 5 seconds to turn off the display and switch to navigation and audio mode

(2) Sisi dan belakang:  When reverse gear is engaged and turn signals are turned on   the display screen switches to a three screen display mode  where the lower half of the display screen displays the reverse rear view screen and the upper left corner displays the front left image of the car Sudut kanan atas menampilkan gambar depan kanan mobil.  On this basis    exit reverse gear  and when the turn signal is powered on  the display screen switches to the left and right display modes   The left side displays the left front screen of the car   and the right side displays the right front screen of the car   When the turn signal is cancelled    the screen automatically switches to the basic screen mode   with a delay of 15 seconds to turn off the display and automatically switch to the navigation audio mode

(3) Selama operasi mobil menekan saklar membran atau mengangkat tuas kemudi ke atas dapat memasuki mode layar dasar

(4) When controlling the steering lever    the lever can only be lifted once at a time    If you need to enter the next screen  you need to pause for one second before operating    Continuous operation for more than two times is invalid    Thin film switch is optional

(5) When using the headlights at night    the steering lever control is ineffective    In this case   press the dual flashing lights to trigger and then turn off the dual flashing lights    At this time   the system enters basic mode    and the operation method for switching the display screen is shown in steps (1) -  (7) .

Diagram aliran kontrol dari 360 ° sistem pemantauan panorama:
Angka

(6) Control flow diagram dari 360 ° sistem pemantauan panorama
Catatan: Saat menggunakan lampu depan tekan lampu berkedip ganda untuk memicu unit utama matikan lampu berkedip ganda kapan saja dan sistem pemantauan masuk ke mode dasar

Kami adalah produsen profesional penelitian dan pengembangan produksi dan pemantauan kendaraan

Perekam video mobil mobil kamera mobil kamera usb mobil layar kamera usb

Silakan hubungi kami melalui email:firecore1688@163.com

WeChat dan telepon:0086+13823606792
